| Inv. číslo: | 505973 |
| Kategorie: | Ostatní > ostatní |
| Typ: | FILMEX |
| Výrobce: | W & H |
| Rok výroby: | 2013 |
| Rok GO: | 0 |
| Parametry: |
max. množstvo vyrobenej fólie : 1150 kg/h Počet vrstiev fólií : 5 max. šírka fólie : 2500 mm Chladiaca jednotka : 2200 mm min hrúbka fólie : 0,02 mm max hrúbka fólie : 0,15 mm |

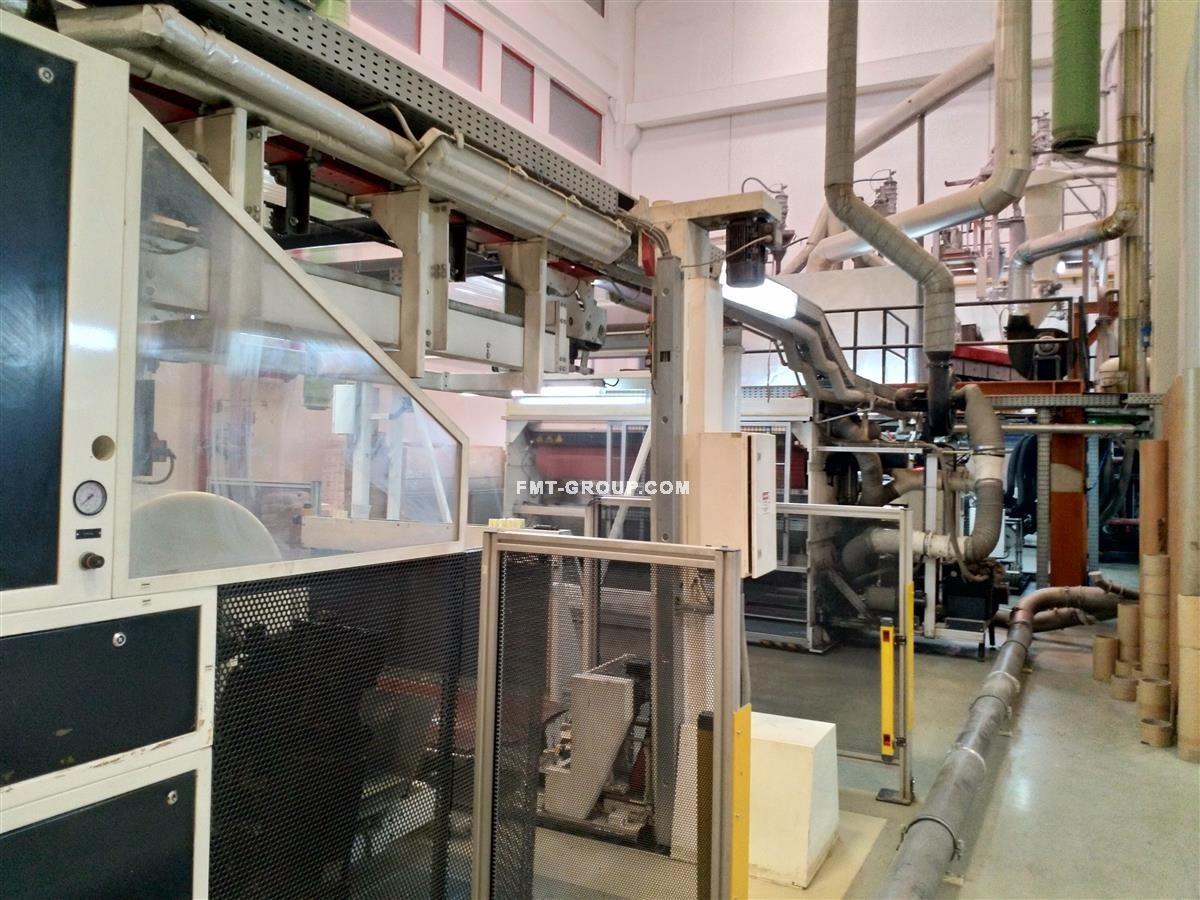

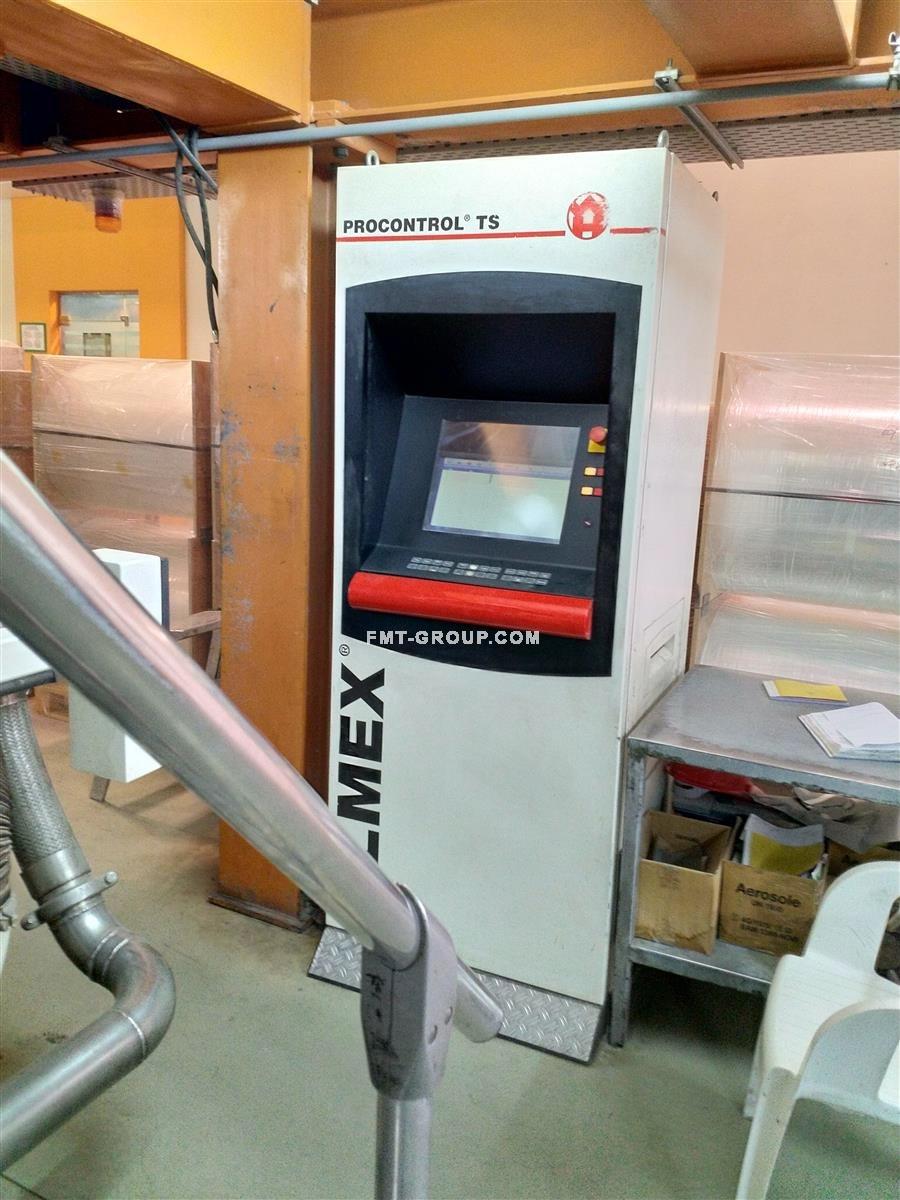

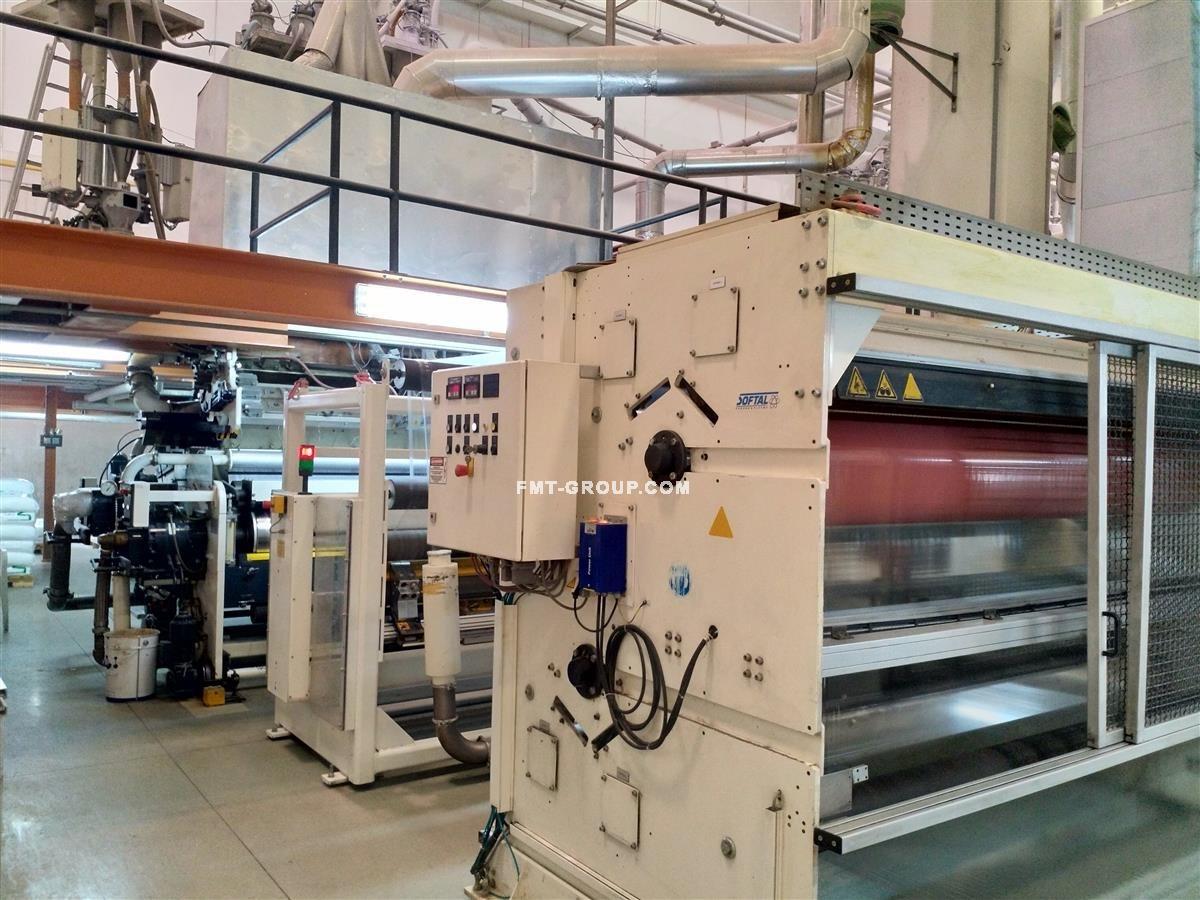

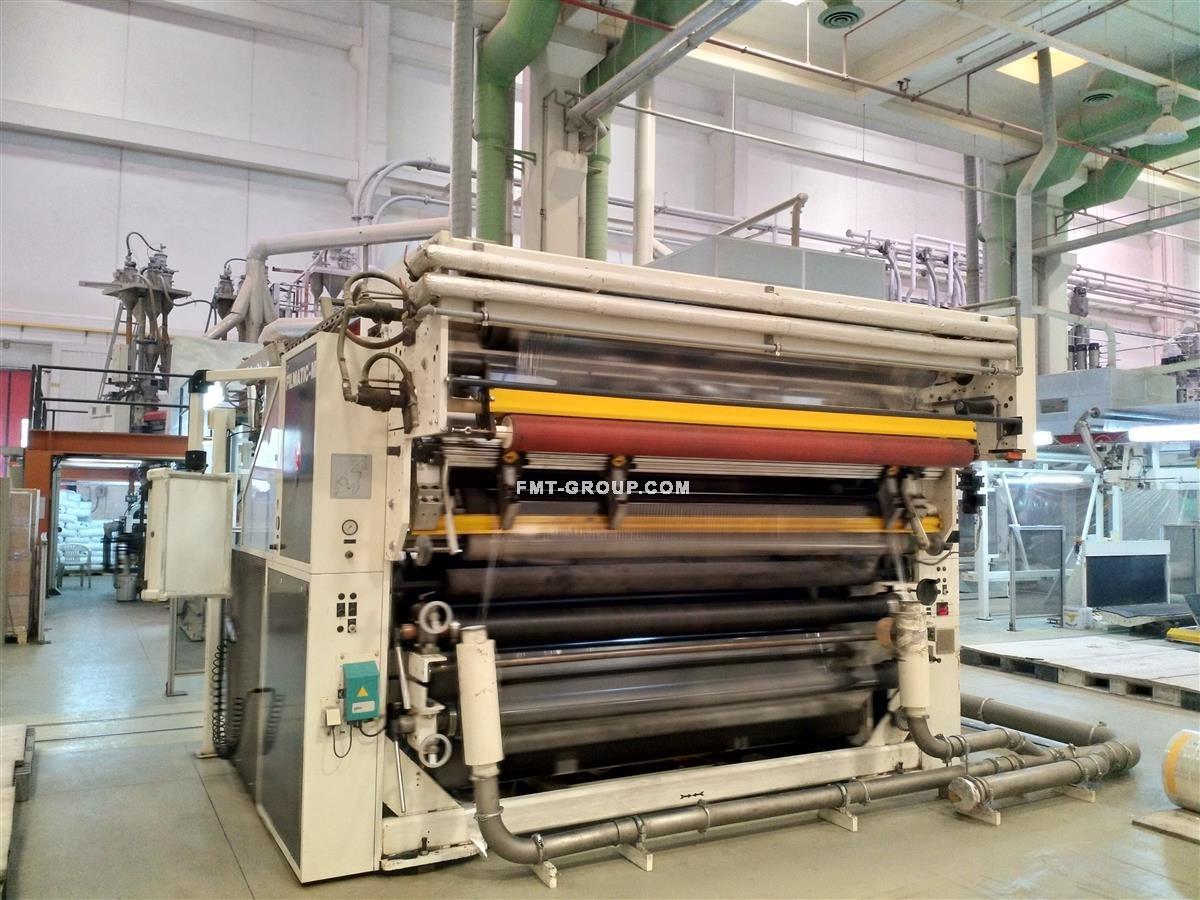

| Popis: | SK: stroje je vo veľmi dobrom stave, pod prúdom, možnosť odskúšania. EN: the machine is in very good technical condition, under power, possible to test it. 350 m/min line speed - last running output 850 kg/h taken by owner Dosing system: INOEX Type: SAVEOMAT IGS Extruder A,B,C: 3 Component Each Extruder D,E: 4 Component Each Screws Diam and L/D: Ext A -105.30D, Ext B-90.30D, Ext C, D& E -70.30D Screen Changer Hydraulic, Brand: B+R Hydrulik Gmbh Die head Cloeren, 2950mm width and Manual Lip opening: more than 0,5 mm, add 10% to 15% to the lip opening. First chill roll diam & Width: 1000 mm/ 3200 mm Second chill roll Diam & width: 400 mm / 3200 mm Thickness control system: BST Procontrol Scanner BETA Web guide: Oscillation Corona treatment: AFS GmbH Type: G300S-FU-11 Rewinder type and diam max reels: Filmatic TC & 1200mm Erema 756T AIR O/P – Kg/hrs - 90-140, Installed power: 77 KW, Dimensions: 25 m Length 10 m Width 7.5 m Height Voltage: 400 V Triphase Frequency: 50 Hz Installed Power: 610Kw |
