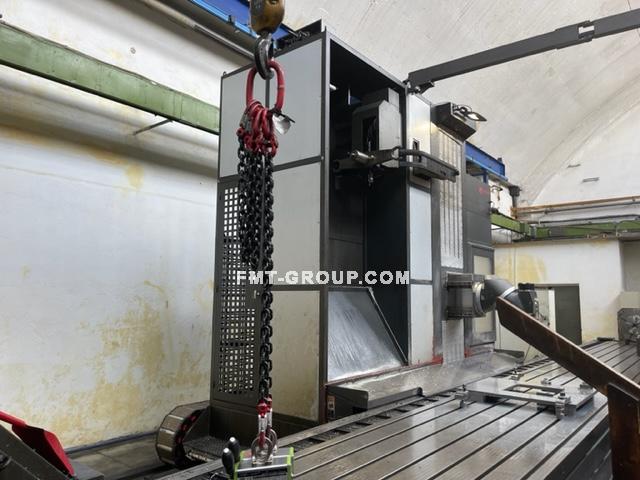

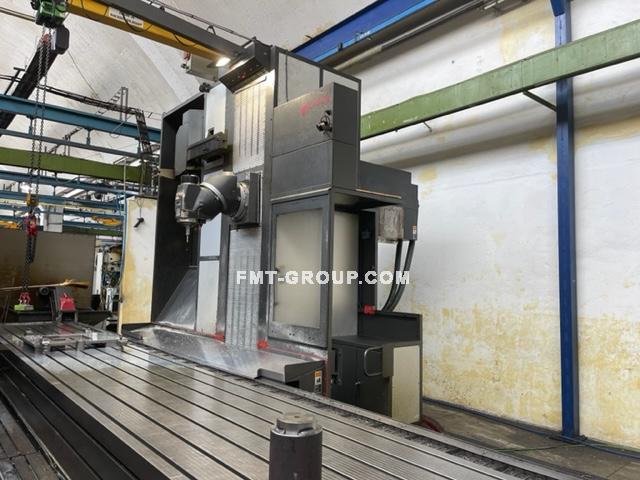

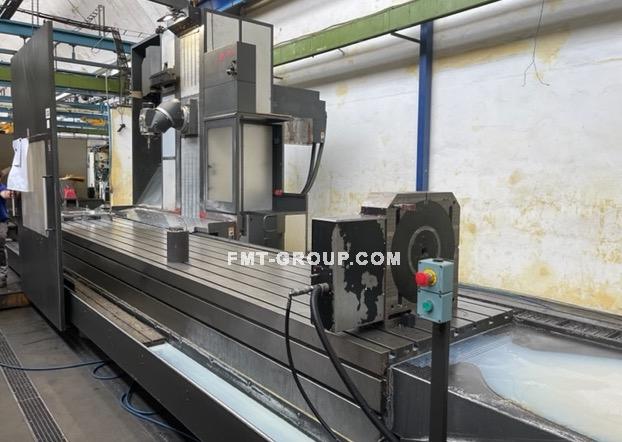

Frézka CNC


Inv. číslo:505278
Kategorie:Frézka > CNC
Výrobce:LAGUN Group
Rok výroby:2011
Rok GO:0

Upínací šířka stolu : 1100mm

Upínací délka stolu : 9500 mm

Max. vaha obrobku : 6000 kg

Rozsah max. otáček : 3000 ot/min

Kužel vřetena : ISO 50

Průměr vřetena : 85 mm

osa x : 8000 mm

osa y : 1200 mm

osa z : 2000 mm


Popis:CZ:Stroj je ve velmi dobrém technickém stavu, připojený pod proudem, možnost odzkoušet.

Řídící systém Heidenhain TNC 530i.
EN:The machine is in good technical condition, connected under power, possible test it.
ravelling Table Bed Mills of excellent quality with a versatile and flexible machining performance. A proven design enhanced with Linear Rails in all axes giving high accuracy & repeatability.

Lagun Bed Mills are a market leader in most European countries with over 500 machines installed throughout Germany alone. Sold throughout the UK since the early 80’s, Lagun CNC Bed Mills are truly the “dark horse” for exceptional European built quality & reliability.

Technical Features GCM-8
Table Working Surface mm 9500 x 1100
Maximum Weight on table kg 6000
Longitudinal Traverse ( X Axis ) mm 8000
Cross Traverse (Ram Travel) mm 1200
Vertical Traverse ( Z Axis ) mm 2000
Main Motor Power kW 34.5
Positioning / Repeatability mm 0.015 / 0.008


Heidenhain TNC 530 HSCi CNC Control
High Precision Linear Guideways in all Axes
Rigid Tapping
Linear Measuring Scales on X/Y/Z Axis
