Filmex 5 - 1500

Inv. číslo:504712
Kategorie:Ostatní > ostatní
Typ:Filmex 5 - 1500
Výrobce:Windmöller Hölscher
Rok výroby:2016
Rok GO:0
Parametry:

films and their combinations : PE / PA

Production option: A/B/A/B/A : 5-layer co-extrusion

Thickness of the produced film: : 0.01 – 0.100 mm

Maximum speed: : 150 m/min

Film production output: min. opt.max.: : 80 kg/h – 120 -1120

Maximum roll diameter: : up to 800 mm

Popis:Production options: PE / PA films and their combinations
Production option: A/B/A/B/A 5-layer co-extrusion
Thickness of the produced film: 0.01 – 0.100 mm
Maximum speed: min. 150 m/min
Film production output: min. 80 kg/h – 120 kg/h – 1120Kg/h

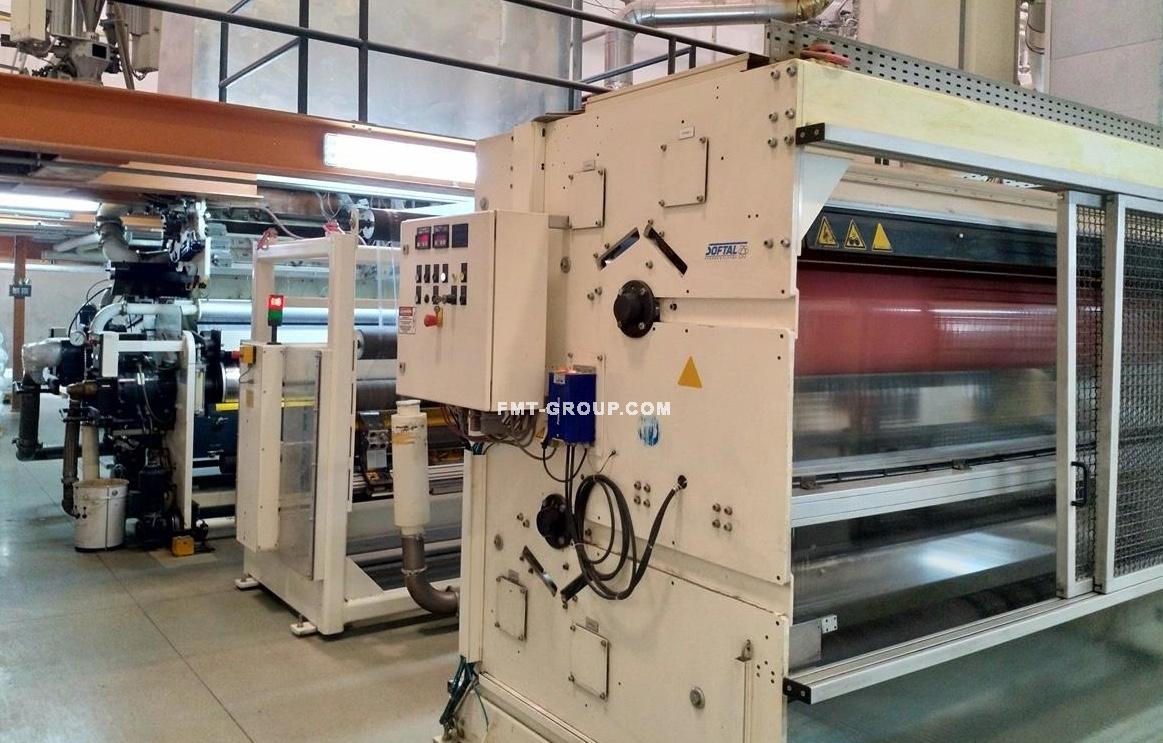

Extrusion system
Frame

The machine frame and all supporting parts of the machine are made of steel and steel plates. The extrusion unit is movable in two directions for easier maintenance. The extrusion units are equipped with safety railings and ladders for better access and production monitoring.

Extruder
Automatic material feeding system
Model: 300g – 5 sets
Low material supply alarm – 3 sets
Thread diameter: 65 mm – 2 sets, 90 mm – 1 set
Ceramic heated, 2x4+6 zones

Main motor
Auxiliary motor power: min. 30 kW, AC motor, speed control – 2 sets
Main motor power: min. 45 kW, AC motor, speed control – 1 set

Heating
Ceramic unit with digital temperature control

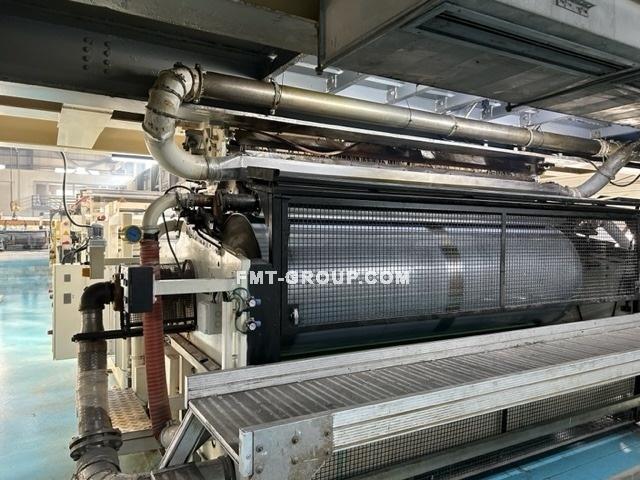

Casting cooling
Main cooling roller
Diameter 450 mm × 1500 mm, aluminum surface – 1 set
Control motor: AC, 4.5 kW, speed control
Auxiliary cooling roller

Diameter 400 mm × 1500 mm, aluminum surface with mirror finish
Control motor: AC, 3.0 kW, speed control

Drive roller
Motor: 1.1 kW, diameter 150 × 1500 mm, aluminum surface with dynamic control

Film thickness control
X-ray thickness measurement
Ensuring film thickness control using electrical measurement
Operating station with display

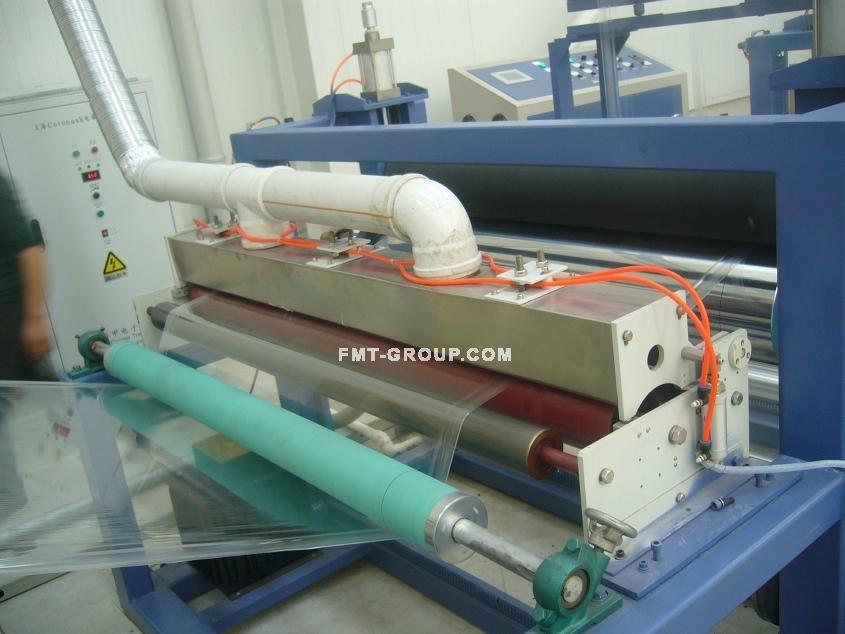

Static electricity removal

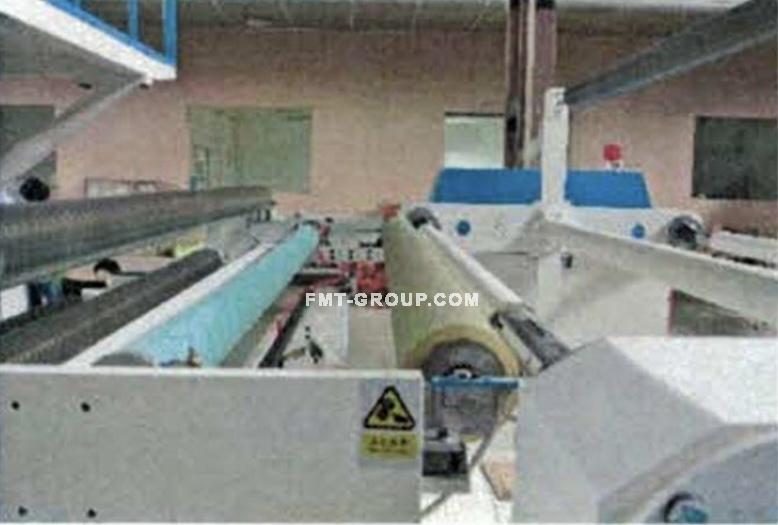

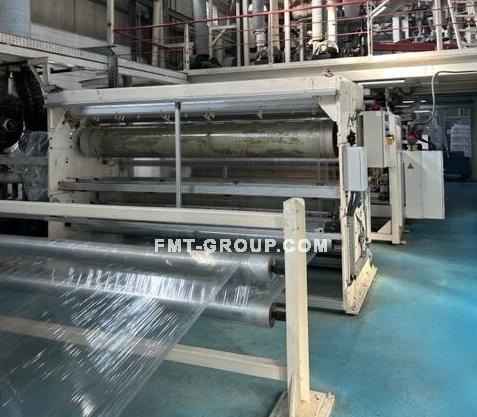

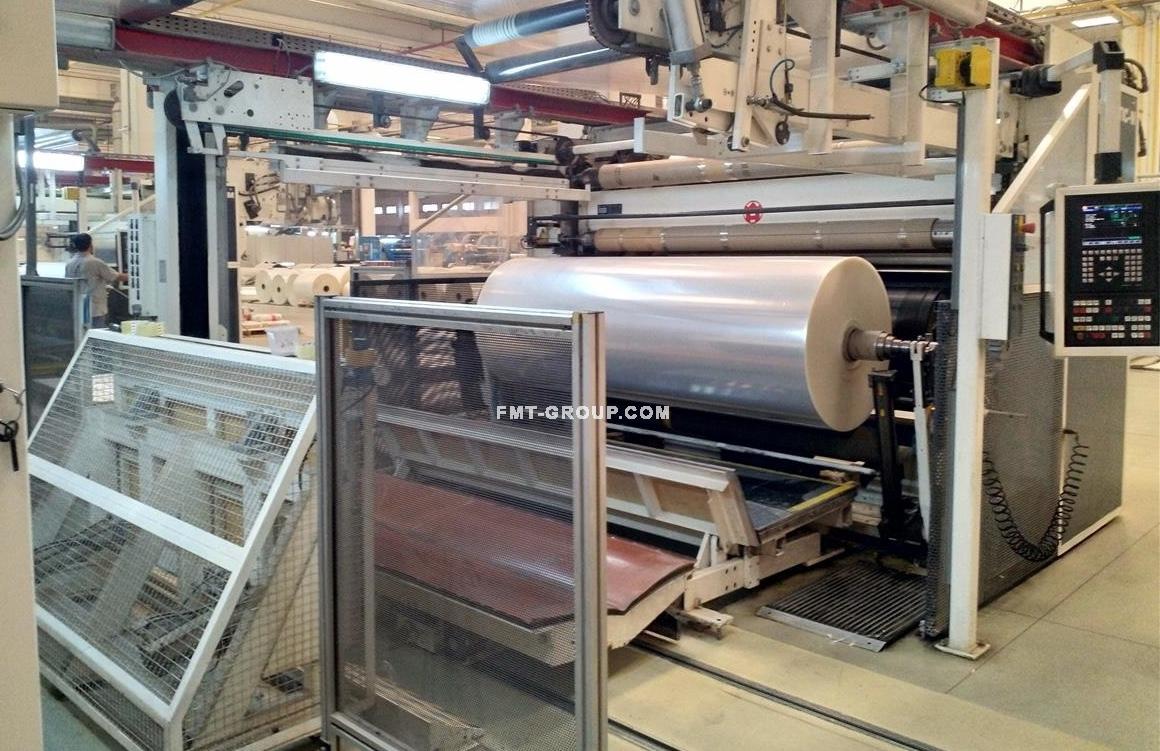

Winding system
Pull rollers: steel, 230 mm diameter, corrosion-resistant
motor: AC, 4.0 kW, speed control – 1 set
Automatic cutting system 4 currents
Number of winding positions: 2
Winding shaft: air type – 2 pieces

Electrics
Automatic temperature control in individual groups
Synchronized speed control

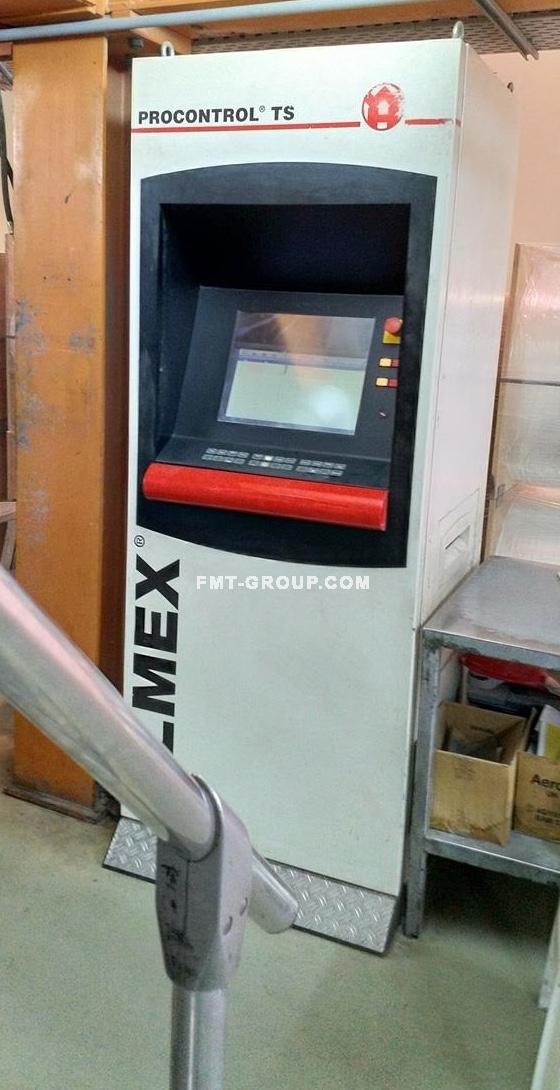

Touchscreen for machine operation and function settings - multifunctional display
