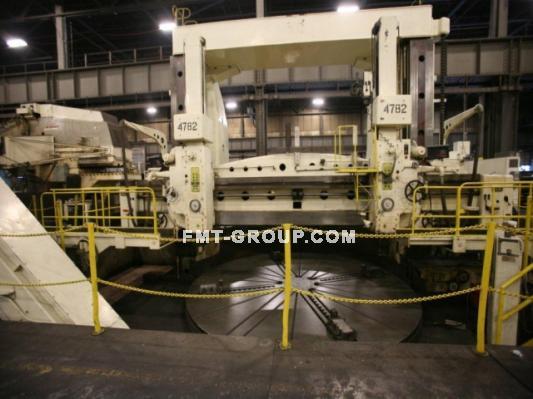

| Inv. číslo: | 503695 |
| Kategorie: | Karusel > dvoustojanový |
| Typ: | SK 50 A |
| Výrobce: | ČKD Blansko |
| Rok výroby: | 1972 |
| Rok GO: | 0 |
| Parametry: |
Max. priemer sustruzenia : 5200 mm Max. výška sustruženia : 3050 mm Priemer stolu : 4750 mm Max. hmotnost obrobku : 40 000 kg Váha stroja : 134 000 kg |
| Popis: | Stroj je v dobrém technickém stavu, odzkoušení pod proudem po předchozí dohodě.2-ose dig. omer. Newall DP7 The machine is in a good technical condition, testing under power after previous agreement.Table Diameter ....................................4,750 mm Table Weight Capacity ................................45 Tons Table Motor, GE Variable Speed Drive..................80 kW Table Speeds (Inf. Variable).................0.33 - 32.8 RPM Max Turning Diameter-Rams..........................5,180 mm Distance between the columns.......................5.200 mm Max Height Under Cross Rail .......................3,260 mm Max height under tool .............................3,050 mm Left Ram Vertical Travel...........................1,400 mm Left Ram Horizontal Travel.........................2,960 mm Right Ram Vertical Travel..........................1,400 mm Right Ram Horizontal Travel........................2,960 mm Vertical Ram Swivel ........................+/- 30 to 45 Degrees Feeds (15) ...................................0.005 - 11 mm/rev Dimensions: Front to back .....................................8,370 mm Left to right.....................................12,600 mm Height ............................................9,890 mm Machine Weight ......................................134 Tons Equipped with: Two Swivelling Ram Heads Side Head 2-Axis Newall DP7 Digital Readout System Threading Attachment Inch/Metric Electronic Tracer Conical Turning Constant Surface Cutting Speed Hydrostatic Table Bearings |
