Inv. číslo: | 505545 |
Kategorie: | Ohýbačka > trubek |
Typ: | 4 RH 4-3 2000x3 |
Výrobce: | IMCAR |
Rok výroby: | 2017 |
Rok GO: | 0 |
Parametry: |
dĺžka stola : 2050 mm Max. tloušťka : 5 mm Typ pohonu : hydraulický Hmotnost stroje : 5200 kg Rozměry stroje : 4785 x 2265 x 1550mm priemer horných a stredných valcov : 248,5 -170 mm priemer bočných valcov : 248,5 - 166,94 mm |

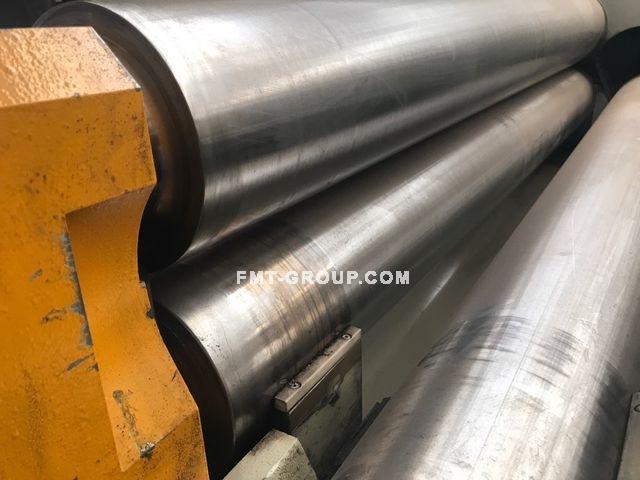

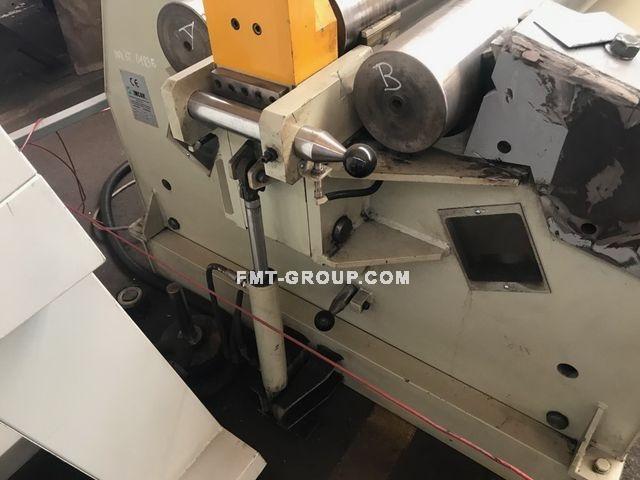

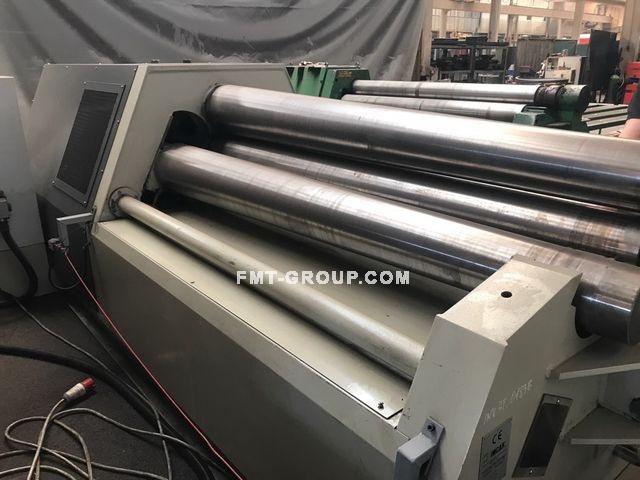

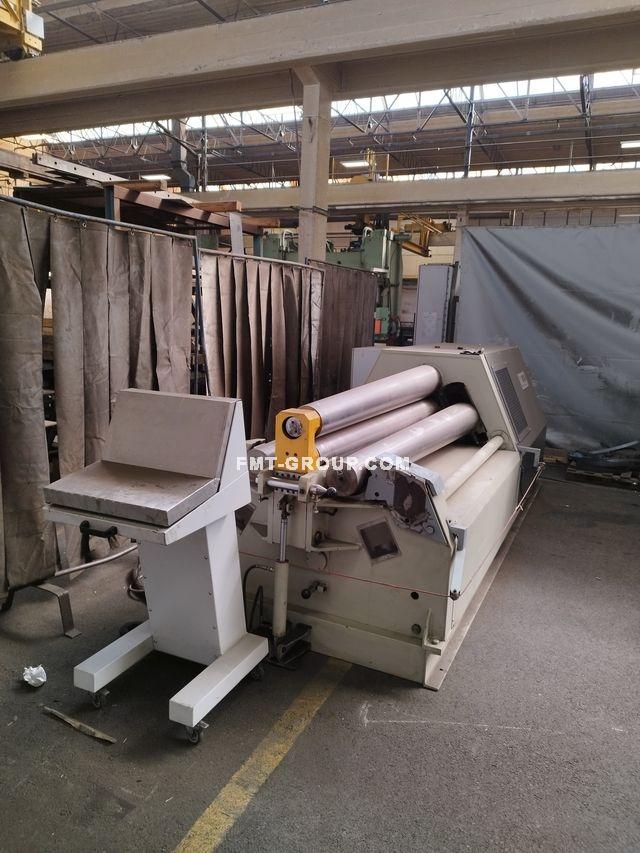

Popis: | CZ: stroj je v dobrém technickém stavu. 4 - valcová hydraulická ohýbačka, s dvojitým predohýbaním. Plne hydraulická, Siemens OP270 CNC EN: Machine is in good technical condition. Hydraulic 4 roll plate bending machine with double pre-bending Fully hydraulic CNC machined main frame components Oversized hydraulic cylinders to reduce working pressure and ultimately increase machine longevity and overall durability Two hydraulic motors with planetary reducers for rotation of lateral rolls Hardened rolls Industrial grade mobile control console on wheels Push buttons controls for parallel movement and rotation of rolls Hydraulic drop end operation from control desk 7yi0ek3l9m Hydraulic parallelism of lateral and pinching rolls maintained by PLC and proportional valve system Hydraulic inclination of lateral rolls for conical bending direct from control desk through selector switches Adjustment of pinch by regulator and pressure gauge with easily adjustable outside switch located on the machine Siemens OP270 CNC controls for automatic production and repeatability |
