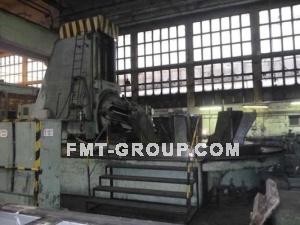

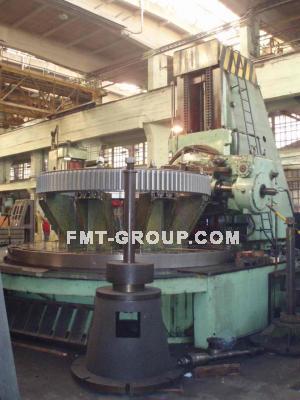

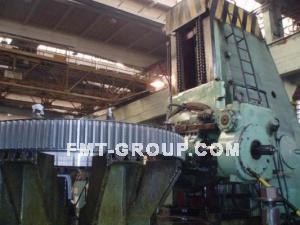

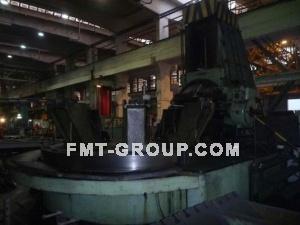

Stroje na ozubení fréza na ozubení

ZFWZ 5000x50

Inv. číslo:504030
Kategorie:Stroje na ozubení > fréza na ozubení
Typ:ZFWZ 5000x50
Výrobce:WMW
Rok výroby:1960
Rok GO:1998
Parametry:

Největší šířka frézování : 1500 mm

Největší průměr frézovaného kola : 5000 mm

Průměr otočného stolu : 4000 mm

Max. frézovaný modul : 50

Hmotnost stroje : 120000 kg

Hmotnost s prislusenstvim : 140000 kg

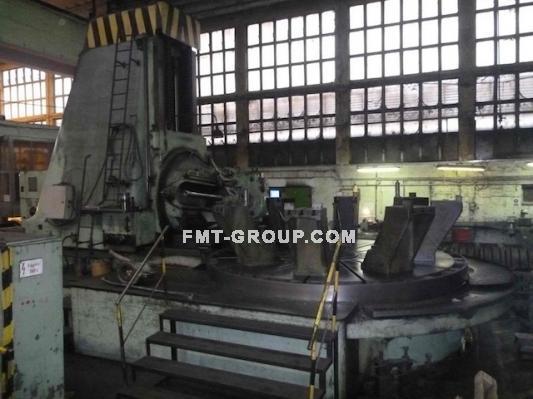

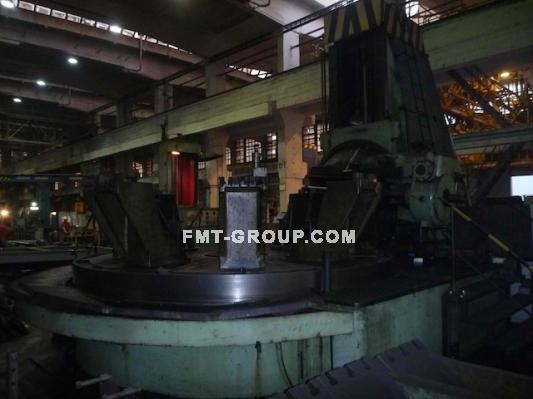

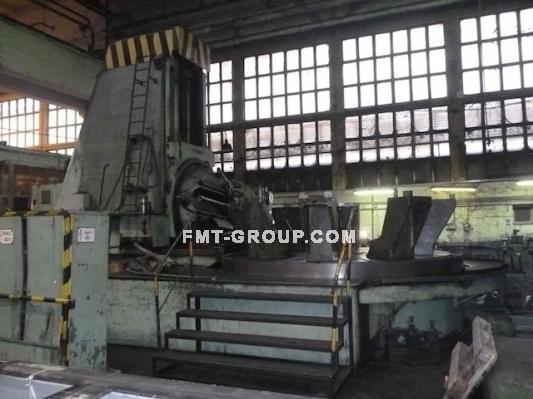

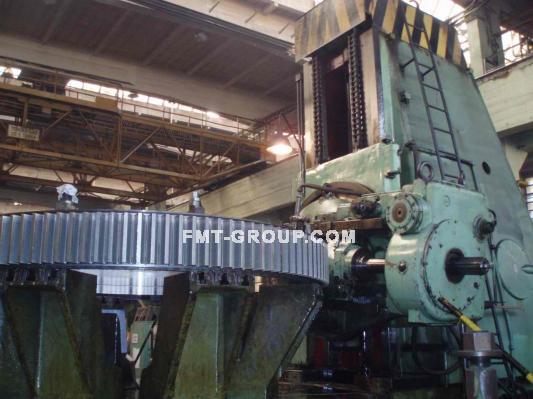

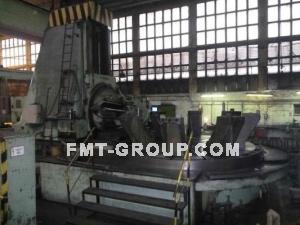

Popis:CZ: Stroj je ve velmi dobrém technickém stavu, v provozu, obhlídka po předchozí dohodě. Příslušenství: 5 hlacv, suport na vnitřní frézování, čepový suport, upínací tyče pro frézy, sada výměnných kol...... .
VIDEO: http://youtu.be/LHe641si0uY
VIDEO 2:http://youtu.be/XNuOXxaVOpU
EN:- under power, excellent condition, very less used machine
- videos and photos available
VIDEO: http://youtu.be/LHe641si0uY
VIDEO 2:http://youtu.be/XNuOXxaVOpU
PARAMETERS
- max gear diameter and modul: 5000x50 mm (depending on heads)
- table diameter 4000 mm
- table center hole diameter 800 mm, depth 1500 mm
- table load 60 t
- spindle taper 100 metric
- head rotation 195 degrees (15 degrees to the right and to 180 degrees
to the left)
- min/ max axis distance 500/2800 (3000) mm - distance between cutter
axis and table axis
- min/ max vertical move 840-2540 mm - distance between table surface
and cutter axis
- electric power requirement appr. 35 kW
- net weight 120000 kg
- complete weight 140000 kg (with accessories)
FIVE HEADS AVAILABLE:
1; universal cutting head: max diameter 5000 mm, max gear width 1500 mm,
max modul 40
- inner gear disc cutting head to universal gear cutting head: min-max
gear diameters 2000-4000 mm, max gear width 300 mm, max modul 24,
largest disc cutter diameter 400 mm and width 130 mm
2; tangential cutting head: min-max gear diameters 800-5000 mm, max
modul 40, largest cutter diameter 400 mm, cutter tangential move 850 mm
3; finger cutting head for outer gears: min-max gear diameters 800-5000
mm, max gear width 1500 mm, max modul 50
4; finger cutting head for inner gears: min-max gear diameters 1000-4000
mm, max gear width 350 mm, max modul 50

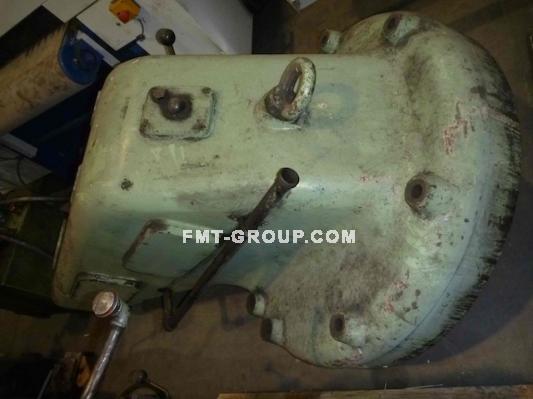

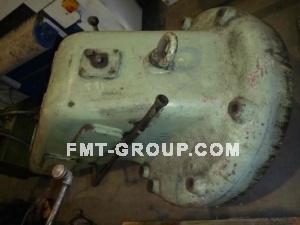

5; additional plano milling head for ring millings

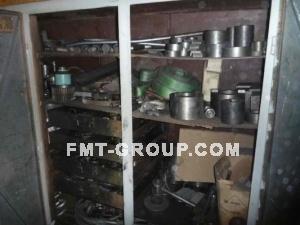

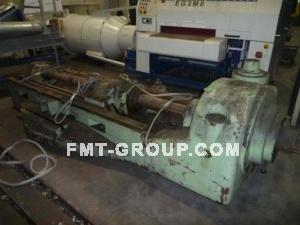

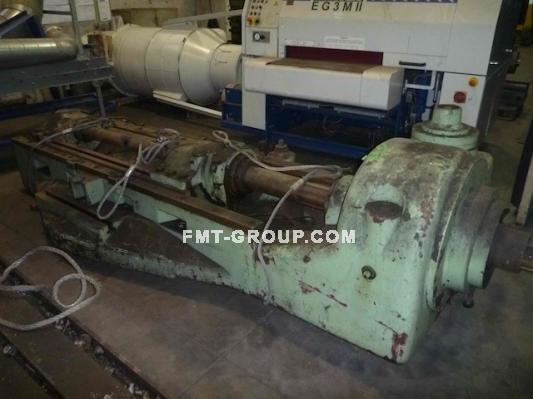

OTHER ACCESSORIES

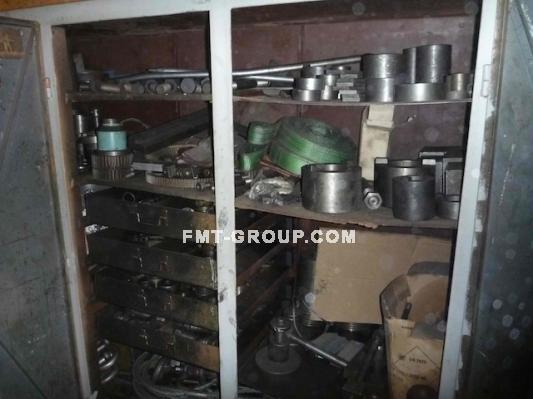

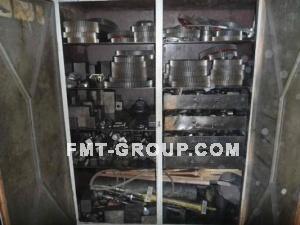

- change gears (very less used - see on photos)
- table supports (8+8 pcs, all scew)
- arbors
- weight
- centering devices
- books
